Keep Calm and Continue Grinding

In a production-grinding operation, waviness on the part surface is a potential clue that the machine or process has developed a vibration problem. The effect might be seen in inspection, or if there is a lapping or polishing step, the effect might be seen in the increased time spent removing the waves. According to Saint-Gobain Abrasives, manufacturer of Norton grinding wheels, this is the point at which shops almost always attempt to solve the vibration problem by making some simple change to the process. And that simple change might be a pretty good approach.

Indeed, those waves on the surface, often called chatter, could indicate the appropriate fix. On a part machined on a surface grinder, for example, vibration frequency (cycles per minute) is equal to the work speed (inches per minute) divided by the distance between two consecutive chatter marks (inch). Find the vibration frequency using this relationship, and if it matches the rotation speed of the grinding spindle, then this indicates that the grinding wheel, wheel flanges or the grinding spindle is a likely culprit. Change the wheel, tighten the flange bolts, or perhaps just change speed, and that much might be enough to cure or control the vibration problem.

But in other cases—some involving other parts of the machine, some involving the natural frequency of the system—a simple fix is not enough to sufficiently address the problem. In these cases, the very best response is to have the machine serviced, repairing whatever failing machine element is allowing vibration to affect the workpiece. But service takes time and it means taking the machine out of production. For shops that need to keep going for the short term, researchers have proven out a process for overcoming vibration’s effects without compromising productivity and without stopping the machine for the time being.

What follows is derived from a paper about a technique called “contact-length filtering” written by Saint-Gobain corporate applications engineers John Hagan and Mark Martin. By reducing the work feed rate while increasing the depth of cut, the effects of severe vibration can be eliminated without any net effect on overall productivity.

Large Wheel-to-Work Ratio

The aim of contact-length filtering is to get the wheel-to-work contact length very large relative to the wavelength of the surface affected by vibration. When the former is high enough relative to the latter, the wheel effectively removes vibration-related peaks from the workpiece, smoothing out the surface even though vibration is still occurring. When the depth of cut is increased by the same multiple that feed rate is decreased, material removal rate (and therefore productivity) can remain the same.

The depth of cut controls contact length. Obviously, the contact length’s increase needs to avoid unfavorable effects such as material burn, workpiece deflection and so on. The wheel’s depth of cut is increased to a level that is heavy compared to standard cutting conditions but still avoids these ill effects.

Meanwhile, the feed rate (or work speed) controls the wavelength of the vibration marks in the part. A slower work speed shortens the wavelength.

Contact-length filtering begins to achieve a smooth surface when double the wheel-to-work contact length surpasses the wavelength of the chatter, or surface waviness. In other words, the condition required for chatter amplitude reduction is...

2 x Contact Length (lc)≥ Chatter Wavelength (λchatter)

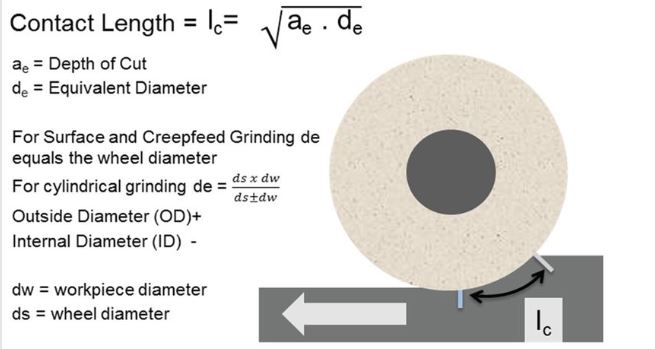

...where the two figures above define Contact Length (lc) and Chatter Wavelength (λchatter).

The technique won’t always work, the researchers say. It won’t be possible in every process to get the vibration wavelength low enough or the contact length high enough. In these cases, the only remaining solution is the one that needs to be performed anyway, namely, take the time to identify and correct the vibration’s underlying cause. See the sidebar for a case in which contact-length filtering was effective for machining a smooth surface in spite of extreme vibration.

This article was written by Peter Zelinski, Editor-in-Chief of Modern Machine Shop and originally appeared in the December 2018 edition. It was reproduced with permission.
